Quality As Standard
100%
Premium-quality cartridge heaters with robust stainless steel sheath and Ni-Cr wire, offering superior durability, precise heating, and exceptional performance for demanding industrial applications.
-
Next Day Deliveries
We endeavour to provide all our customers with a first-class, quality service as standard. All orders received before 2:00 pm will be dispatched the same day on a 24-48hr free service to the least time possible. All orders required in 24hrs are dispatched using courier service, who offer a next day secure service.
-
Quality Promise
Our goal is to provide the highest quality cartridge heaters for all of our clients. We continuously strive to improve the performance of our cartridge heating elements and aim to surpass both your requirements and expectations. Whether you’re choosing from our standard stock or need a special made to measure element, we promise to provide the best possible product – at the best possible price.
-
Guarantee
We are confident that you will be more than happy with our cartridge heaters – which is why we offer a quality guarantee. If you are not 100% satisfied with your product, you can return them (as long as they are unused) within 30 days for a full refund. If you require something different to our standard range, why not give us a call. Specials can be made within a 3-4 week lead time.
-
Stock On Hand
We carry over 200 different cartridge heating elements and stock a range of metric and imperial sizes as standard. These are all available for immediate dispatch, so your production line won’t be out-of-action for as long as you thought.
For any other non-standard designs, we offer an efficient 4-week turnaround. This even applies to specialist design requirements, such as fitted temperature sensors or zone heating patterns.
Imperial Sizes
Cartridge heaters made with metric size diameters.
Metric Sizes
Cartridge heaters made with imperial size diameters.
WHO WE ARE?
WELCOME TO CARTRIDGEHEATERS
For a comprehensive supply of cartridge heaters and temperature sensors including thermocouples and PT100/RTDs, trust Cartridge Heaters to deliver next-day, minimizing disruptions to your production.
Featured Products
-
Cartridge Heaters
Metric RangeDurable stainless steel sheath, high-density insulation, and Ni-Cr wire ensure efficient, versatile, safe, and long-lasting performance with customizable, compact, and cost-effective design.
-

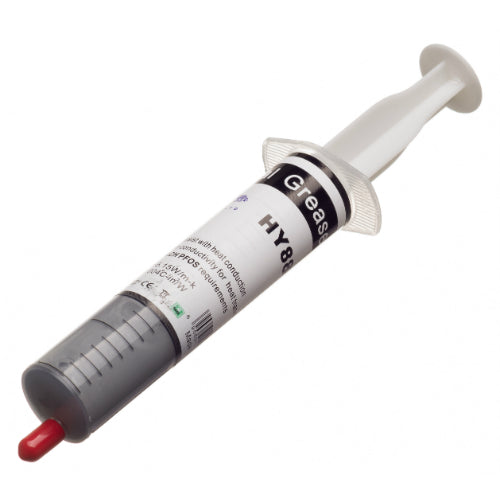

Thermal paste
More InfoHigh-performance thermal grease for efficient heat transfer, ensuring optimal cooling and reliable performance in electronics and industrial applications.
-
Temperature Sensor
Select Sensor TypeFlexible cartridge heaters with durable stainless steel sheath and Ni-Cr wire for efficient, uniform heating in compact spaces, ideal for industrial and precision applications.
Industrial K Thermocouple Assembly Head
Industrial K Thermocouple Assembly Head
Frequently asked Questions about Cartridge Heaters
What size do I drill the hole?
What size do I drill the hole?
If you order a 10 mm cartridge heater from us it will been made slightly smaller than 10 mm so that it will be a snug push fit into the hole. The same applies to imperial or metric sizes. The hole should also be reamed out wherever possible to ensure proper heat transfer.
Can cartridge heaters be used to heat liquids?
Can cartridge heaters be used to heat liquids?
Cartridge heaters are generally not suitable for heating liquids in direct contact as they are usually of the high watt density type. Liquids do not offer a fast enough heat transfer as metals and therefore will cause the heater to quickly overheat or liquid to quickly evaporate and boil.
What are the common causes of heater failure?
What are the common causes of heater failure?
Liquid Contamination is the most common cause of cartridge heater failure. This is caused by the likes of moisture, hydraulic oils, and melted plastic that are seen on failed heaters. Other causes are lead abrasion and movement, inadequate heat-sink, high operating temperatures (inadequate temperature control).
Also a common problem which is over looked is a incorrect heater diameter selection. If this is not correct chosen then the heater will quickly burn its self out. Cartridge heaters need to transfer their heat to another source ASAP because they are high powered elements for heating large solid objects. If the heater are a lose fit in a hole then there is no where for the heat to go except to burn the heaters out internally. If you have a 5/8″ cartridge heater then a 5/8″ hole must be machined to accept the heaters. The use of thermal grease is also best practice to ensure heat transfer.
Can I have a specially designed cartridge heater?
Can I have a specially designed cartridge heater?
We are able to make cartridge heaters to your requirements; they are available in lengths up to 3 m and diameters from 3 to 40 mm. Any wattage or voltage is possible depending on the watt density sizing limitations. We can also easily make different terminations as required.
Can I use a longer or shorter cartridge heater in a existing hole?
Can I use a longer or shorter cartridge heater in a existing hole?
This is not recommended unless only used as short term solution. This is because if the cartridge heater is too long the ends which protrude over heats leading to premature failures.If the cartridge heaters are too short and the cartridge heater sinks within the hole then the leads tend to burn and short circuit the cartridge heater.The cartridge heaters should be fitted with a maximum length tolerance of 5mm.
