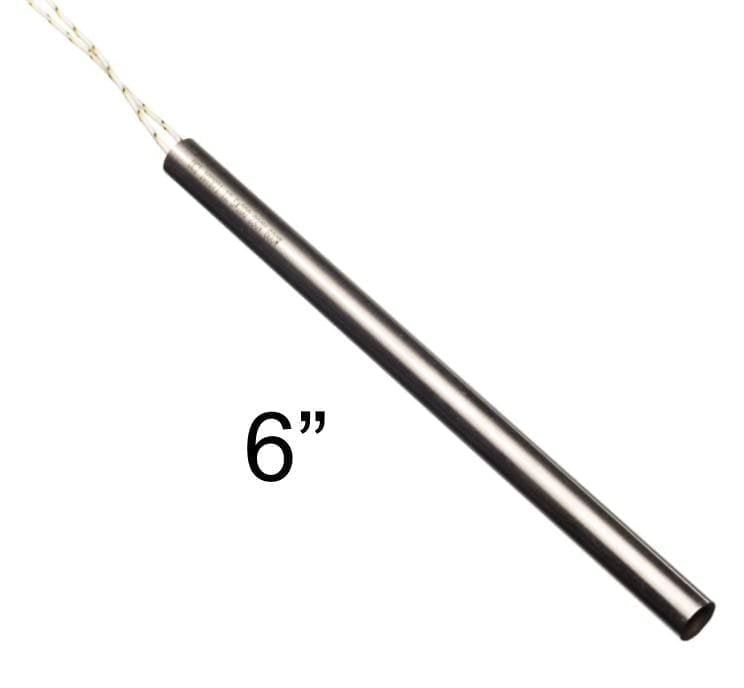

Cartridge Heater 5/8" x 6" 540w 240v

Cartridge Heater 5/8" x 6" 540w 240v, 200mm fibreglass leads.


Cartridge Heater 5/8" x 6" 540w 240v available from stock, fibreglass leads 200mm.

Other designs are available on request. The metric equivalent size is 16mm, click here for stock sizes.

Technical Spec

Diameter Tolerance: 0.02/0.06mm
Unheated zones: Top 6-15mm, bottom 5-10mm
Wattage density: 30W/cm
Wattage tolerance: +5% -10%
Wattage zones: Yes
Thermocouples/PT100: Yes
Sheath material: 304-321
Conductor material: NiCr8020
Sheath temp: Max 700 C

What different types of cartridge heaters are available?

Supplied as high watt densities as standard for the most demanding of applications. Cartridge heaters are also available as medium and low-watt options. We offer them with different wire connections and termination options. They can be supplied with integrated thermocouples and various heating zones over the length.
