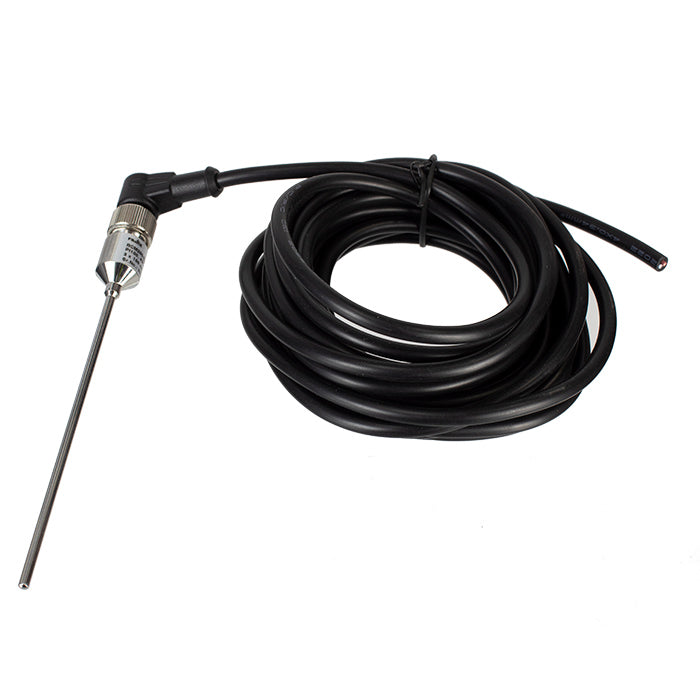

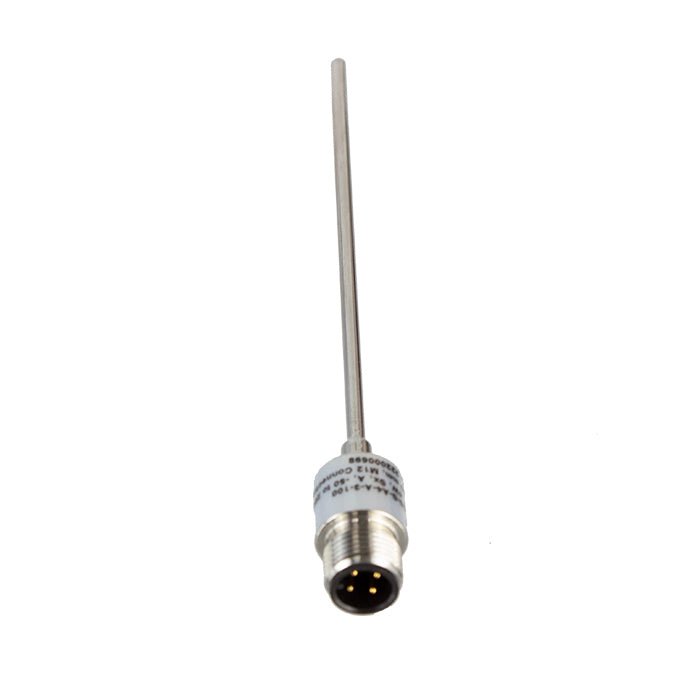

PT100 RTD 6mm Industrial Temperature Sensor M12 Connector

PT100 RTD 6mm industrial temperature sensor M12 connector, 4-Wire as per IEC 751, Class A (+/- 0.15ºC. Connecting cable available.

Description

PT100 RTD 6mm industrial temperature sensor M12 connector is used in process industries where accuracy is required. They are manufactured with a 4 wire connection which is the highest you can achieve with RTD sensors. They have sealed ends to ensure long life and protection.

Features

• Pt100 Class B RTD element
• 316 stainless steel wetted parts
• ½” BSPP process and instrument connection
• 150mm PFA insulated flexible lead wires
• Can be used in 2, 3 or 4 wire configuration
• Standard sheath lengths of 50, 100, 150, and 200 mm

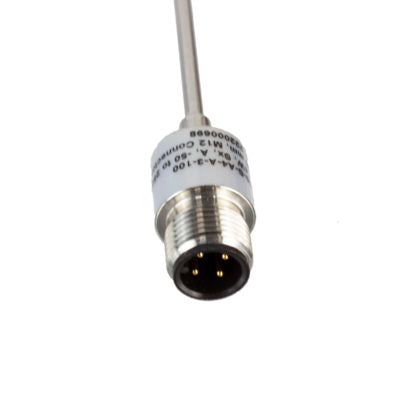

• IP67 Moulded 4-Pin A-Coded M12 Connector

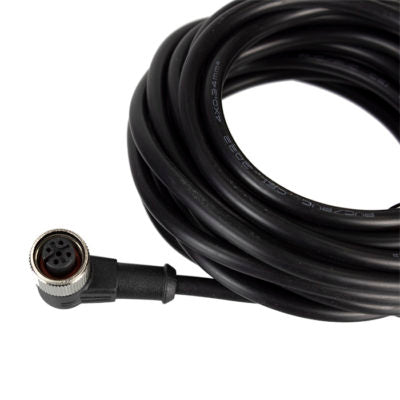

• Use with  M12 female extension cables.
• In-Line, Remote and Wireless Transmitters Available

Details

• Type: Pt100, 4-Wire as per IEC 751
• No. of circuits: One (Single element)
• Accuracy: Class A (+/- 0.15ºC at 0ºC and +/- 0.3ºC at 100ºC)
• Sheath dia: 6 mm
• Sheath Material: SS316L (1.4404)
• Process Connection: M12 4pin right angle male plug with 5m cable
• Connection tip rating: 0 to 250ºC

Applications

• Field Replacement of Sensors
• Industrial Process Control
• Pharmaceuticals & Chemical Plants.
